|Installing the CAGS Skip Shift Eliminator
Performance mod to eliminate the 1-4 Skip Shift on manual shift C5/Z06
- Your Fingers
- Jack (car lift, etc.)
CAGS Skip Shift Eliminator
Not including shipping.
Install Time (on a 2002 Z06): (10 - 15min.)
Click On An Image To See It In Full Size
Description: A plug in resistor that bypasses the skip shift solenoid on
the C5/Z06 Corvette.

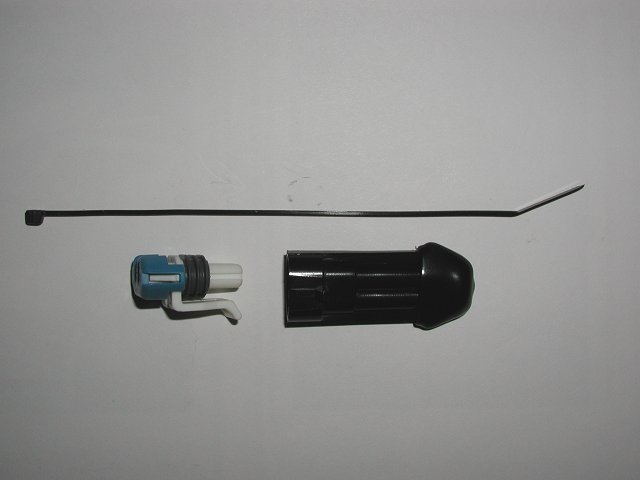

Here is what you get with the CAGS Skip Shift Eliminator Kit. If you want
to go the cheaper route, you
can also buy a 2.2K ohm .5watt resistor from Radio Shack or similar
electronics store for a few cents and bend the ends of the resistor and plug
it into the factory socket.
1. Jack up your Vette.
First thing to do is to jack up your car and craw under
the transmission. Here you'll see the connector from the drivers side of
the tranny. Unplug the connector to prepare for the CAGS Skip Shift
Eliminator (or the 2.2K ohm .5 watt resistor)!

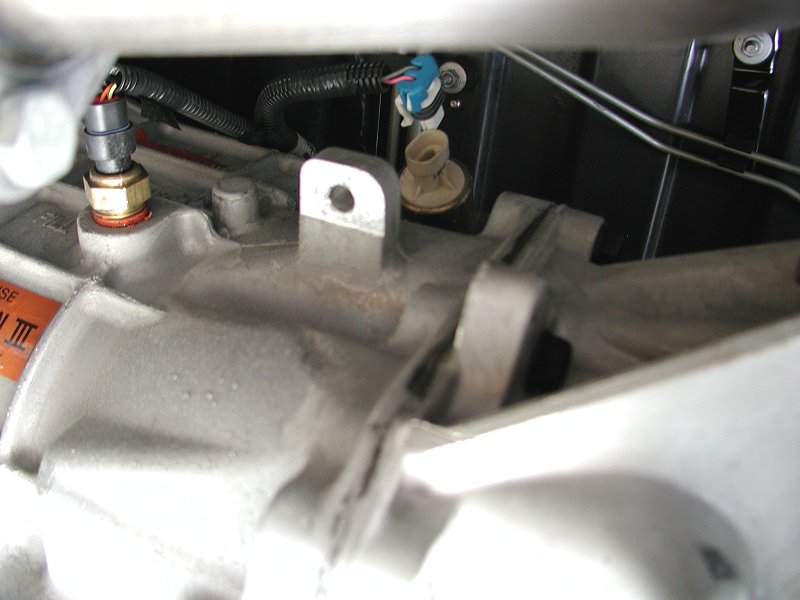

Alright! Now it's unplugged. This is easy huh? Now go
get your GAGS Skip Shift Eliminator or resistor.

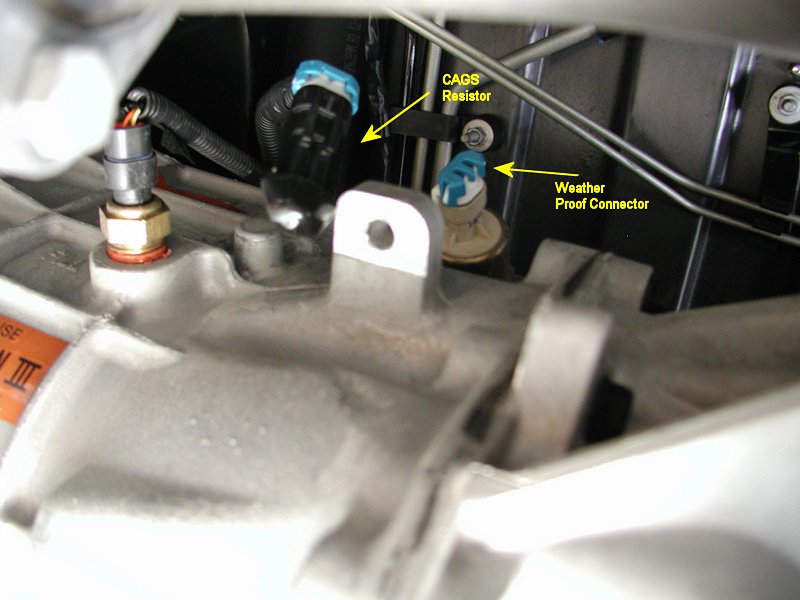

3. Plug and play.
It's as easy as that. This will probably
be the easiest mod ever!! The CAGS Skip Shift Eliminator should be water
proof, but if you go the resistor route, make sure you use electrical tape
around the connector so water doesn't get in it!

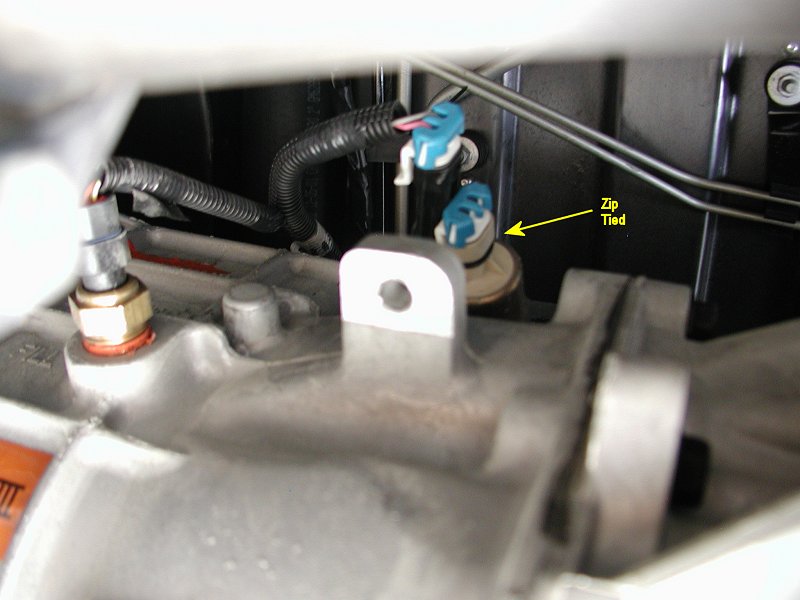

4. Zip Tie.
Now that the messy job is done it's time to tidy up and
finish the job. Get a zip tie and tie it to the skip shift solenoid on the tranny. Or if you want, just tie it anywhere you see fit.
Get ready to have full
control of your shifts and not let the computer tell you where you have to
