Installing Z06 Style Front Grilles


Enhance appearance.

Tools Required

  • Pliers


Manufacturer Part # Description Purchased From Price
--- --- Z06 Style Front, Side and Rear Grilles $154.99
Total Not including shipping. $154.99


Install Time: (10min.)

Click On An Image To See It In Full Size

1. Determine left and right screen.

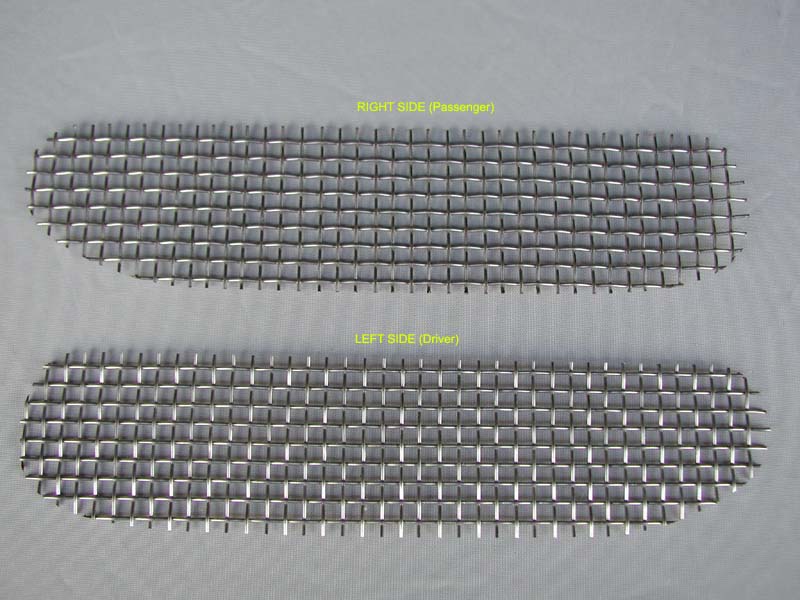

If you click on the picture below, you can see it labeled left and right. Notice that one side has a angle cut. That will be the side that faces to the outest most corner of the brake duct.

2. Install Screen.
If you stick your hand inside and brake duct opening and push down on the brake duct, you will see it easily moves down with a little pressure.

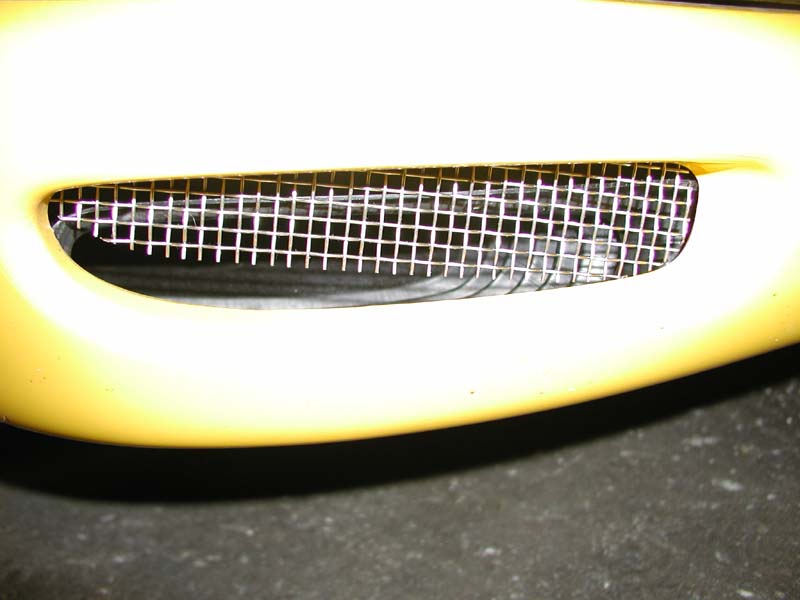

Take your screens and bend them a little so it goes with the contours of your inner brake duct. Now you can take the screen and slide it in place. It might take a few minutes to work it in there.

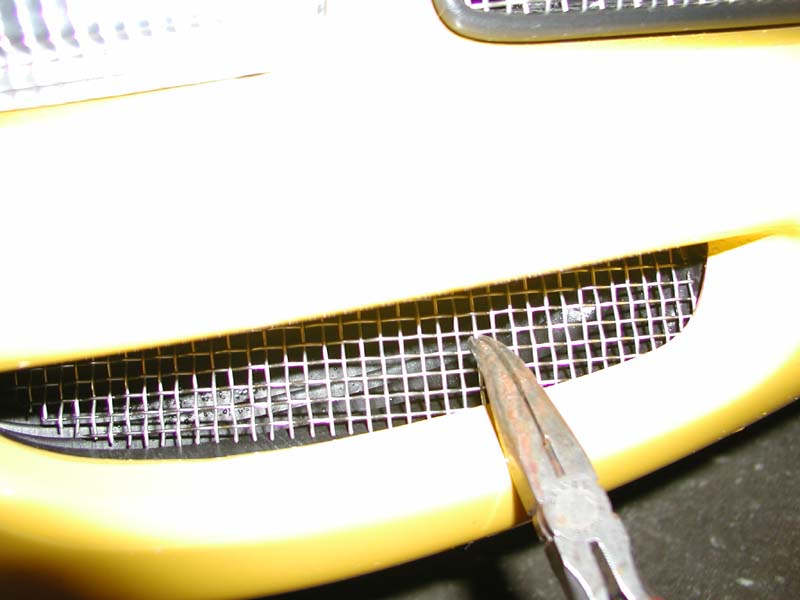

Once you can get it in there, you can use your pliers to position the grille in place. Try to use a long thin screw driver and push the brake duct back in position.

3. You are done.

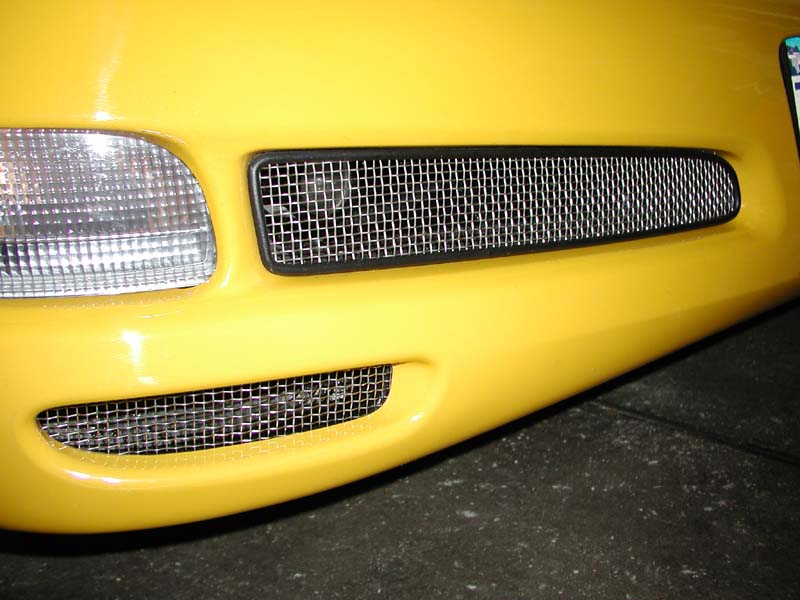

Make sure everything lines up and you are done. :)
